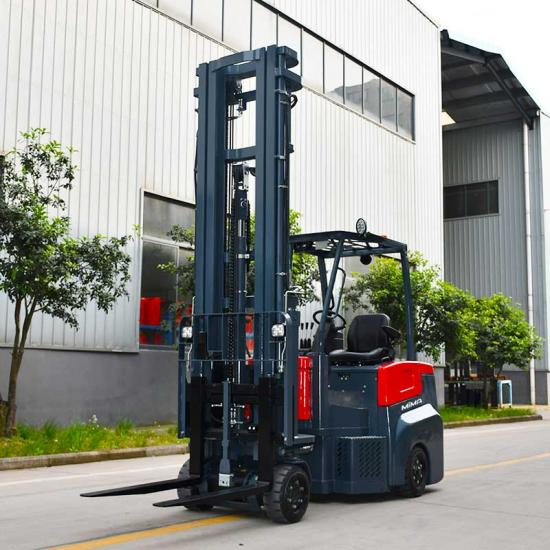

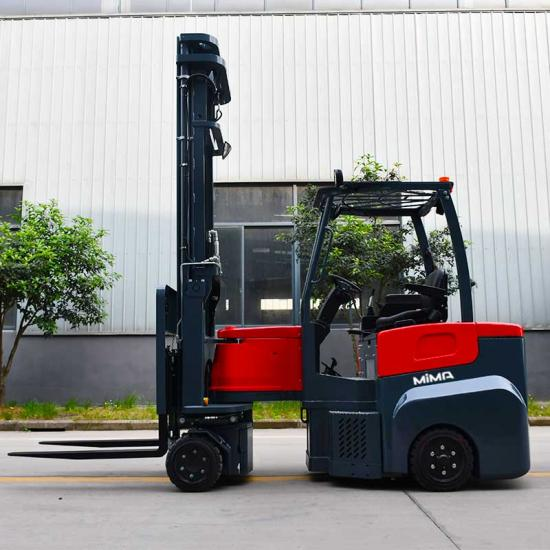

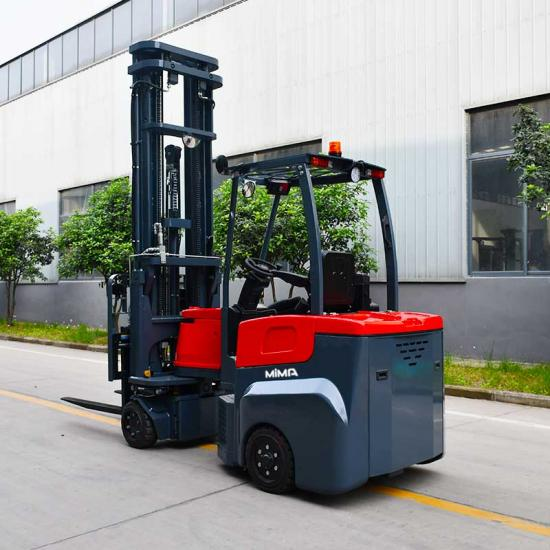

VNA electric articulated forklift

Main Features:

Comfort

•  Adopting new concept and novel streamlined design, the visual effect is greatly improved. This articulated forklift is a reliable choice with compact and simple appearance.
• Adopting wide view mast design with wireless camera and video display.

Convenience

• International advanced MOSFET AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.
• Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.

Performance

• AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.

• Safety is greatly improved by OPS function as standard configuration.

• Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.



  Manufacturer	MiMA	MiMA	MiMA
  Model		MJ20	MJ20
  Power type		Battery	Battery
  Operation Type		Seated	Seated
  Rated capacity	Q(kg)	2000kg	2000kg
  Max. Lift height	h3(mm)	4600-12500	4600-12500
  Fork size	l/e/s(mm)	1100/100/50	1100/100/50
  Turning radius	Wa(mm)	2200	2200
  Driving speed	km/h	15	15
  Overall length	L1(mm)	3830	3830
  Overall width	b1/b2(mm)	980/1260	980/1400
  Steering type		Hydraulic	Hydraulic
