Pallet Stacker is a new generation of products developed for warehousing logistics Equipment. It is drived by battery. The maximum load capacity of 2.0T.
● Horizontal handling and stacking of medium cargo;
●Middle and long distance handling and stacking;
●Applicable to loading, unloading and handling palletized goods in warehouses, supermarkets and workshops.

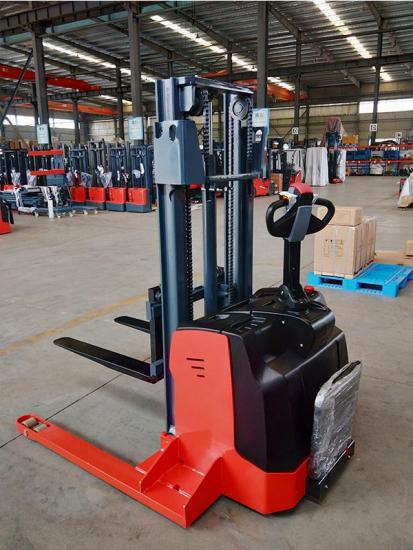

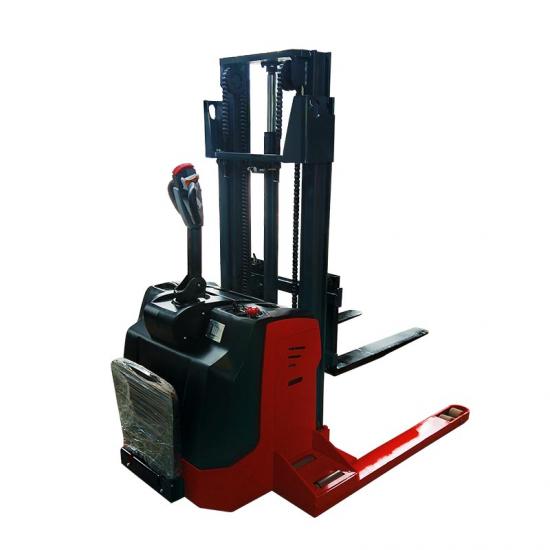

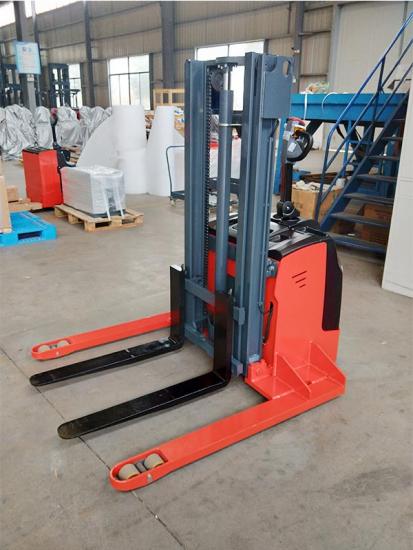

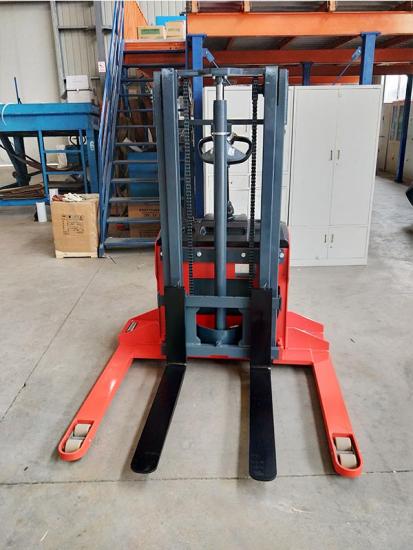

1.5T-2.0T Electric Straddle Stacker with Optional Lithium Battery
Main Features:
1.Pallet stacker use Maintenance-free high-power AC drive system which provide reliable driving power. The 210AH large-capacity battery gives strong endurance;
2.Standard CURTIS series controller is reliable and durable. AMP waterproof and dust proof plug-in which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electronic steering, integrated joystick. It is safe, labor-saving, flexible operation;
4.The newly designed floating suspension system makes the steering operation more flexible and convenient;
5.The forklift adopts 5 points low gravity design and the frame is made of high-strength steel plate frame structure, which has large spare capacity and long service life.
Specification:
| Brand | MiMA | MiMA | |
| Model | MB15 | MB20 | |
| Power Type | Battery | Battery | |
| Operation Type | Stand-on | Stand-on | |
| Service weight(incl. battery) | kg | 1270 | 1300 |
| Rated Capacity | Q(kg) | 1500 | 2000 |
| Load Center | C(mm) | 600 | 600 |
| Max. Lifting height | h3(mm) | 3000 | 3000 |
| Forks size | l/e/s(mm) | 1150/190/56 | 1150/190/56 |
| Front Overhang | x(mm) | 428 | 428 |
| Turning radius | Wa(mm) | 1755 | 1755 |
| Max. climbing ability | %(tanθ ) | 8/10 | 6/8 |
| Driving speed(load/unload) | km/h | 5/6 | 5/6 |
| Lifting speed(load/unload) | mm/s | 125/175 | 65/100 |
| Lowering speed(load/unload) | mm/s | 115/135 | 95/100 |
